At Waves 2025, the Jio Pavilion presented an important lesson for anyone building contemporary brand experiences: volume can be manufactured. Not through more pixels alone, but by combining moving structure, deliberate light, and choreographed content. The pavilion—part of a larger immersive showcase that included a Bharat Pavilion and five distinct experience zones—drew sustained attention and offered a clear proof point for kinetic LED systems as tools for narrative scale and physical presence.

This piece unpacks the Kinetic LED Wall from three angles that matter to senior decision-makers and experienced brand technologists: the mechanical architecture that makes independent tiles move as a single organism; the control and content pipeline that keeps motion meaningful and not merely ornamental; and the perceptual tricks that create an “illusion of volume” which audiences register as presence, not gimmick. Along the way I’ll reference the Waves deployment as a practical case study and surface concrete recommendations for teams planning investment-grade immersive activations.

Where Kinetic LED Walls sit in the toolkit

For established brands, experiential technology choices hinge on clarity of role. Kinetic LED screens occupy the middle ground between static high-resolution displays and full room-scale projection or AR environments. They deliver three strategic capabilities:

Physical agency — movable tiles introduce a dimensionality you can choreograph against real objects or people.
Focal hierarchy — sections of the wall can change position and brightness to guide attention, creating a live stage for messaging.
Scalability and repeatability — modular tiles can be specified for indoor or sheltered outdoor use and replicated across events.

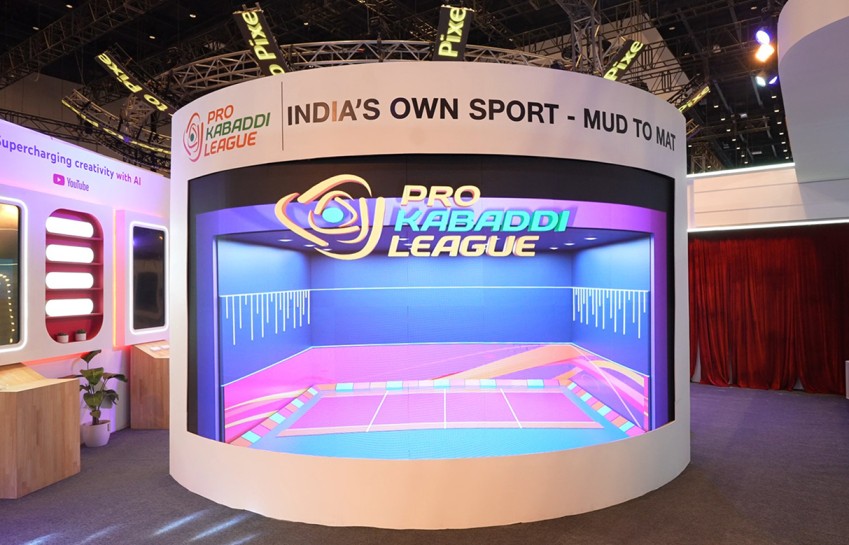

At Waves, the Kinetic LED Wall complemented other technologies—an anamorphic curved LED surface, a Holobox hologram, gesture-based interactive tables—each solving a distinct storytelling problem. The Kinetic Wall’s role: dramatize corporate scale and the constellation of sub-brands through motion and shifting ‘auras’ generated by independently powered tiles.

Mechanics: the anatomy of a kinetic LED system

A kinetic LED wall is more than a screen on rails. It’s a system composed of four integrated subsystems:

Structural frame and rigging — a bespoke metal framework that supports tile movement and ensures safety under dynamic load. At scale the frame must accommodate thermal expansion, service access, and redundant safety stops. The C-shaped LED wall at Waves, for example, required a bespoke massive metal framework to preserve visual alignment while allowing curvature and movement.
Tile modules — each module contains the LED panel, a drive/controller board, local micro-actuators (stepper motors, linear actuators or servo assemblies), and connectors for power and data. Kinetic designs favor lightweight composite backs and reinforced mounting points to minimize motor torque requirements.
Motion control — a distributed motion network (commonly DMX-over-Ethernet or an industrial EtherCAT layer) coordinates tile movement. Centralized motion controllers issue position setpoints while local controllers manage micro-adjustment and safety interlocks. In high-safety venues, hardware limit switches and optical encoders give an independent verification of tile position.
Power and thermal management — tiles shifting between power states create dynamic heat loads. Effective heat-sinking and staged power distribution prevent overcurrent scenarios, and serviceability—quick-swap tile modules—reduces downtime on busy show days.

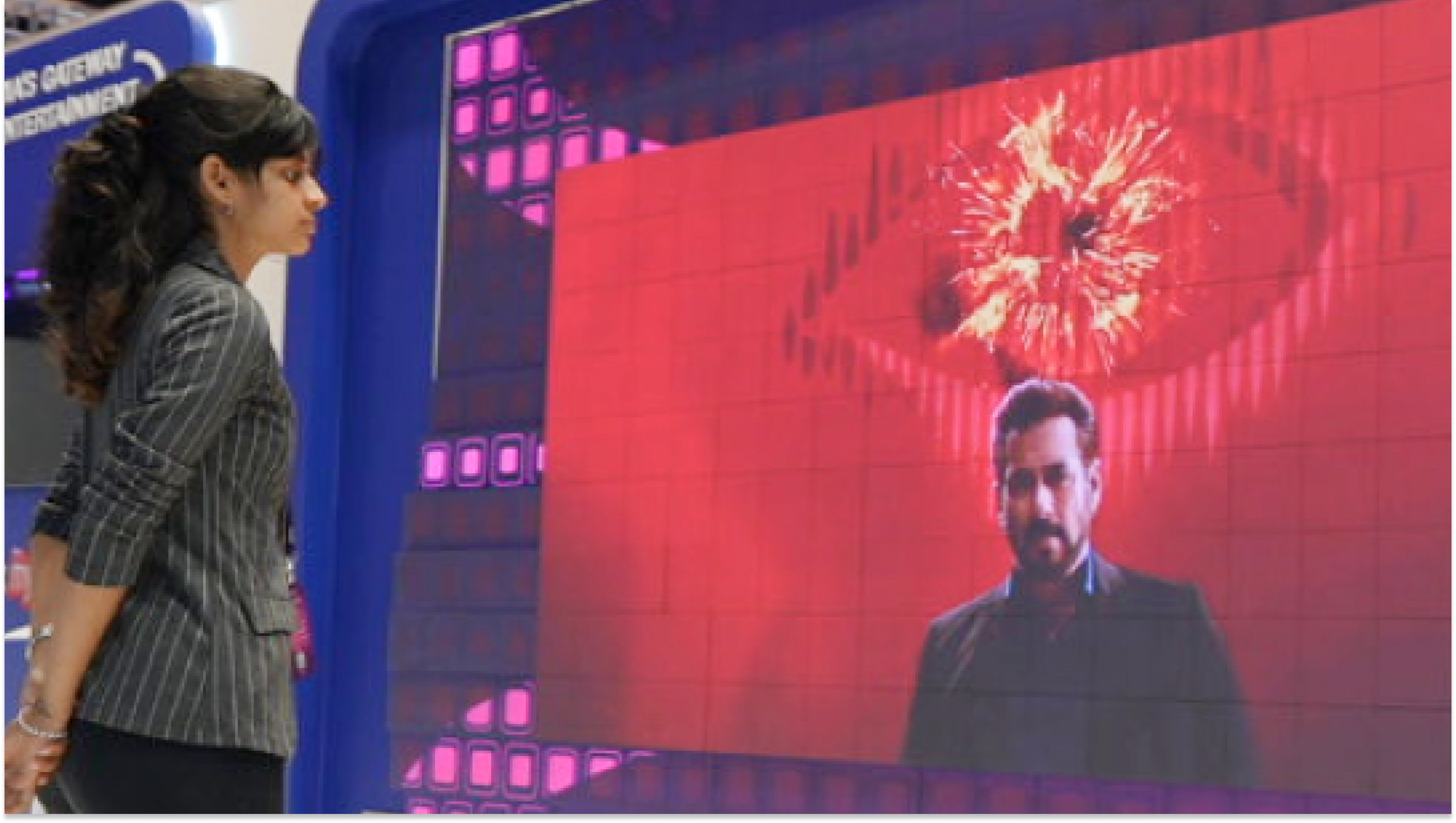

The Waves installation leveraged independently animated tiles whose power and visual content could vary tile-by-tile. That permitted not just movement, but local changes in brightness and content aura—an essential aspect of the “volume” illusion.

Control: choreography that reads as narrative

Motion without purpose looks like novelty. Control architectures make kinetic walls legible:

Timeline-driven choreography: Treat the wall like a performer. A central show controller sequences motion cues, content cues, and lighting states along a timeline. This was the approach at Waves where tiles shifted and altered content to depict corporate narratives and festival visuals.
Parameterized behaviors: Instead of hardcoded moves, expose parameters—speed, damping, offset, brightness—to creative tools. This lets creative directors test variations quickly against spatial constraints and human flow.
Sensing and reactive modes: When appropriate, couple motion to environmental inputs—crowd proximity, audio intensity, or a gesture table—to make the surface feel responsive. At Waves, gesture-based tables and other interactive content served as companion layers, increasing dwell time and visitor agency.
Fail-safe orchestration: Motion systems must gracefully default to a safe, static configuration if comms or power fail. Redundancy in the control path and explicit error-handling behaviors are non-negotiable at enterprise events where dignitaries and heavy footfall are expected.

A practical control stack for brand activations pairs a show-control engine (for deterministic timelines and safety interlocks) with a content server that maps visuals to the tiles’ real-time positions.

Content pipeline: mapping visuals to moving canvases

Kinetic walls invert a common production assumption: the canvas can move. Content teams must therefore think in two dimensions—visual design and spatial choreography.

Anchoring points: Design elements that remain visually tied to physical objects or to specific tiles. Anchors help maintain legibility as tiles shift.

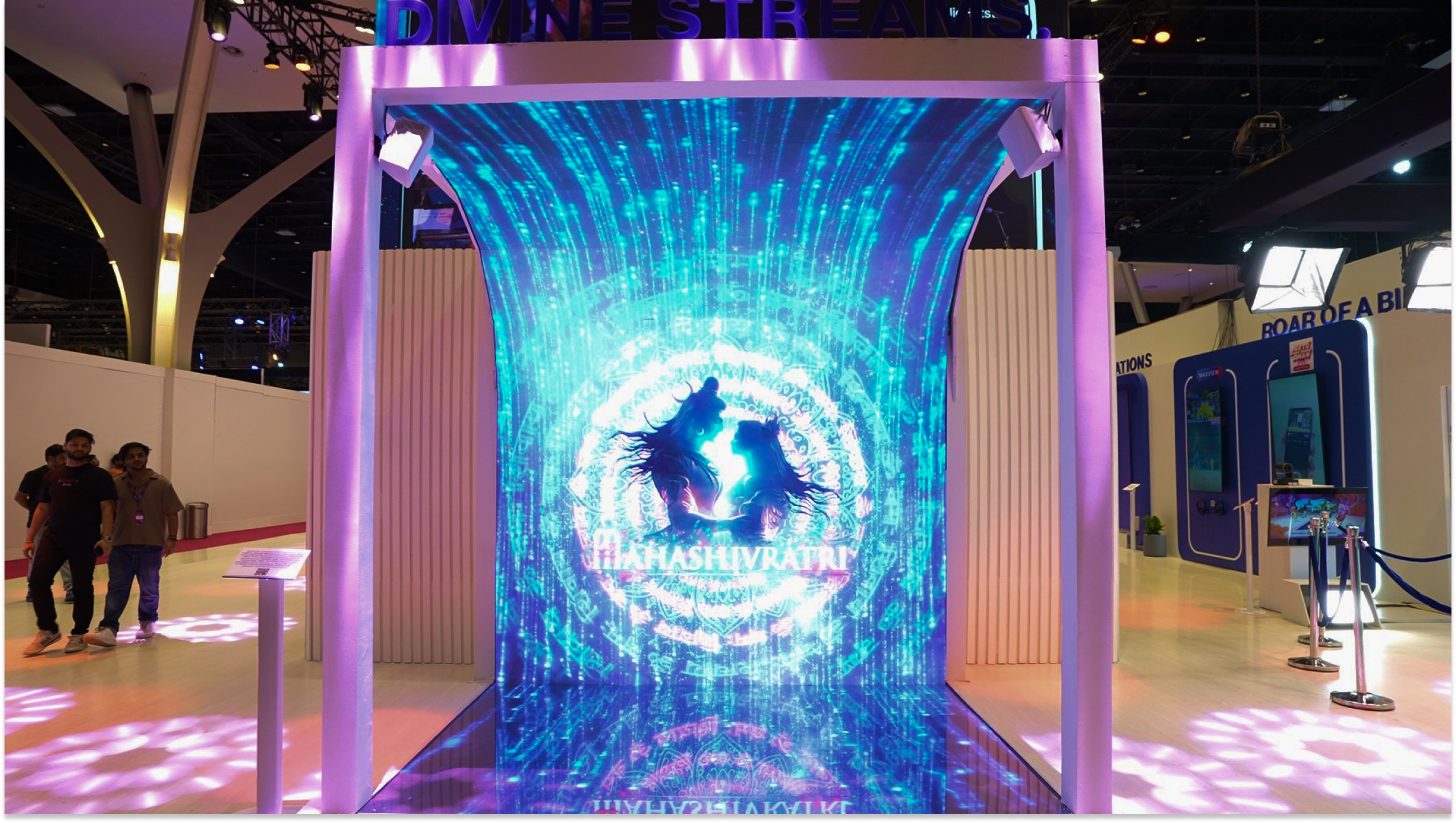

Motion-aware assets: Create elements in layers—foreground, midground, background—then render or composite them with knowledge of tile offset. In the Waves anamorphic installation, precise math and perspective mapping were used to preserve depth cues across curved and moving surfaces.
Real-time compositing: Use GPU-accelerated engines to composite content on the fly, allowing for last-moment adjustments and reactive modes (e.g., live broadcast snippets or user-generated content).
Calibration and pixel registration: Calibrate every tile to the same color temperature and gamma curve. Dynamic brightness shifting—used at Waves to create “auras” around tiles—requires precise per-tile color calibration to avoid visible seams.

These pieces together give creative teams fine-grained control over how motion shapes meaning. A tile’s movement should never be arbitrary; it should function as punctuation in a brand’s visual grammar.

The illusion of volume: why movement reads as presence

Perception researchers describe presence as the brain’s register that an object occupies physical space. Kinetic LED walls exploit several perceptual mechanisms to create that register:

Occlusion and parallax: Even subtle independent movement of tiles creates parallax cues that the brain interprets as depth. When tiles shift forward or backward relative to other elements, viewers perceive real volume.
Specular highlights and directional light: Moving tiles change how surface highlights fall. When paired with intentional lighting—Waves’ Holobox used calibrated lighting rigs of substantial scale—this amplifies the sense of three-dimensionality. (At Waves, calibrated lighting on the Holobox ran to roughly 150,000 units to render realistic holographic effects.)
Temporal coherence: The brain expects visual elements to obey consistent motion rules. When tile motion obeys a coherent tempo and easing function, the display reads as a single living object rather than a set of panels. The Kinetic Wall at Waves deliberately modulated each tile’s power and motion to create a coherent aura representing the Jio Star constellation.

When these perceptual factors are combined with narrative content—say, a brand’s evolution or a festival tableau—the wall reads as spatial storytelling rather than technology

Engineering for scale and reliability

Deployments at events like Waves face realities many corporate pilots ignore: continuous high footfall, VIP scrutiny, and extended run hours. The Waves pavilion recorded more than 100,000 visitors at the Bharat Pavilion zone with average dwell times exceeding 12 minutes—metrics that translate directly into wear, power cycles, and service needs.

Operational recommendations:

Serviceability-first design: Modules should be swappable by a two-person team with hand tools. Spare parts on site are essential.
Energetic staging: Anticipate peak power draws when tiles shift to high-brightness states; distribute feeds across multiple breakers and incorporate soft-start circuits.
Environmental controls: Indoor venues still require thermal management and dust mitigation. Dynamic tile motion can stir particulates; filtration and scheduled cleaning preserve LED lifetime.
On-site diagnostics: Provide a live status dashboard showing tile position, temperature, and drive health. This saves precious troubleshooting cycles during operating hours.

These measures turn a spectacle into a sustainable asset rather than a one-off prop.

Metrics that matter for senior stakeholders

Decision-makers need outcomes—how does this affect brand metrics, attention, or conversion?

From the Waves case we see a handful of clear, trackable outcomes: high visitation (100,000+ visitors in the Bharat area), long dwell times (average >12 minutes), and high-visibility impressions by dignitaries and industry leaders—outcomes any CMO or Events Head will recognize as valuable signals of brand lift and earned media.

Quantitative measures for future programs:

Dwell time & throughput: hours per visitor and visitors per hour.
Engagement depth: interactions per visitor on companion touchless tables or voice interfaces.
Media pickup: press mentions, social media shares, and broadcast citations.
Lead conversion: meetings scheduled, data captures, or direct commercial inquiries attributable to the activation.

Linking these to financial KPIs (cost per engaged visitor; estimated earned media value) creates a defensible ROI calculation for the board.

When to choose kinetic LEDs vs alternatives

Kinetic LED walls work best when three conditions are present:

Need for physical presence — the brief calls for spectacle that must be read at distance and in photos.
Content that benefits from dimensionality — narratives about scale, heritage, or constellation-like brand architectures map well to moving tiles.
Sufficient operational budget and timeline — mechanical systems require design, prototyping, and testing time.

If the priority is ultra-high resolution imagery for product close-ups or if the activation must be lightweight and rapidly deployable across multiple cities, projection mapping or fixed LED walls may be more appropriate. The decision should be driven by experience goals, not technology appetite.

Lessons from Waves 2025 — practical takeaways

Waves offers three pragmatic lessons for senior teams:

Design motion around intent: At Waves the Kinetic Wall didn’t move for novelty; motion encoded brand scale and the interrelationships between sub-brands. Motion = meaning.
Integrate companion experiences: Gesture tables, holograms, and anamorphic screens worked as a system; each interaction reinforced the others and increased average dwell time.
Plan for scrutiny: High-profile events attract dignitaries and press. Robust safety, redundancy, and a rehearsal schedule are non-negotiable—especially when installations deploy for several days and service windows are limited.

A note for procurement and creative leaders

Start procurement conversations early. Ask potential suppliers for:

Mechanical drawings and lift calculations.
Show-control architecture diagrams.
A content workflow that supports motion-aware assets and calibration scripts.
Service-level agreements for on-site support during the activation.

Insist on a staged rehearsal plan: install, smoke-test, dress rehearsal with live media, and a contingency plan for manual override. The Waves program’s ability to attract high-profile engagement came from tight integration between production, content, and operations teams—an outcome that requires early alignment.

Closing: why kinetic volume matters for brand storytelling

Kinetic LED walls transform scale into a narrative device. They turn static messaging into movement that audiences register physically and emotionally. At Waves 2025, that transformation helped a major media conglomerate make complex brand architecture legible on a crowded convention floor—bringing together cultural storytelling (the Bharat Pavilion’s “Kala to Code” arc), sports narratives, and corporate identity into an integrated visitor journey.

For brand leaders considering their next flagship activation: think in systems. Define the story you want motion to tell, architect the mechanical and control systems to support that story reliably, and measure outcomes that matter to the business. If you’d like, Ink In Caps can share the production schematics, calibration checklists, and a brief that maps narrative objective → motion design → KPI framework so your next activation behaves like a disciplined communications program rather than a one-off stunt. That operational rigor—paired with the sensory clarity kinetic walls deliver—turns technology into an owned business advantage rather than a line item in a budget.
