Large-scale events demand precision. Brand activations on high-traffic floors need technical execution that holds up under pressure. Anamorphic projection creates depth illusions that stop foot traffic and drive engagement. The challenge lies in maintaining that illusion across dozens of viewing angles while managing crowd flow and equipment reliability.

Floor Layout and Viewing Geometry

Start with sightlines. Map primary traffic patterns before selecting projection surfaces. The anamorphic sweet spot must align with natural crowd movement. Position the optimal viewing zone where attendees naturally pause or queue. This reduces forced staging and increases organic dwell time.

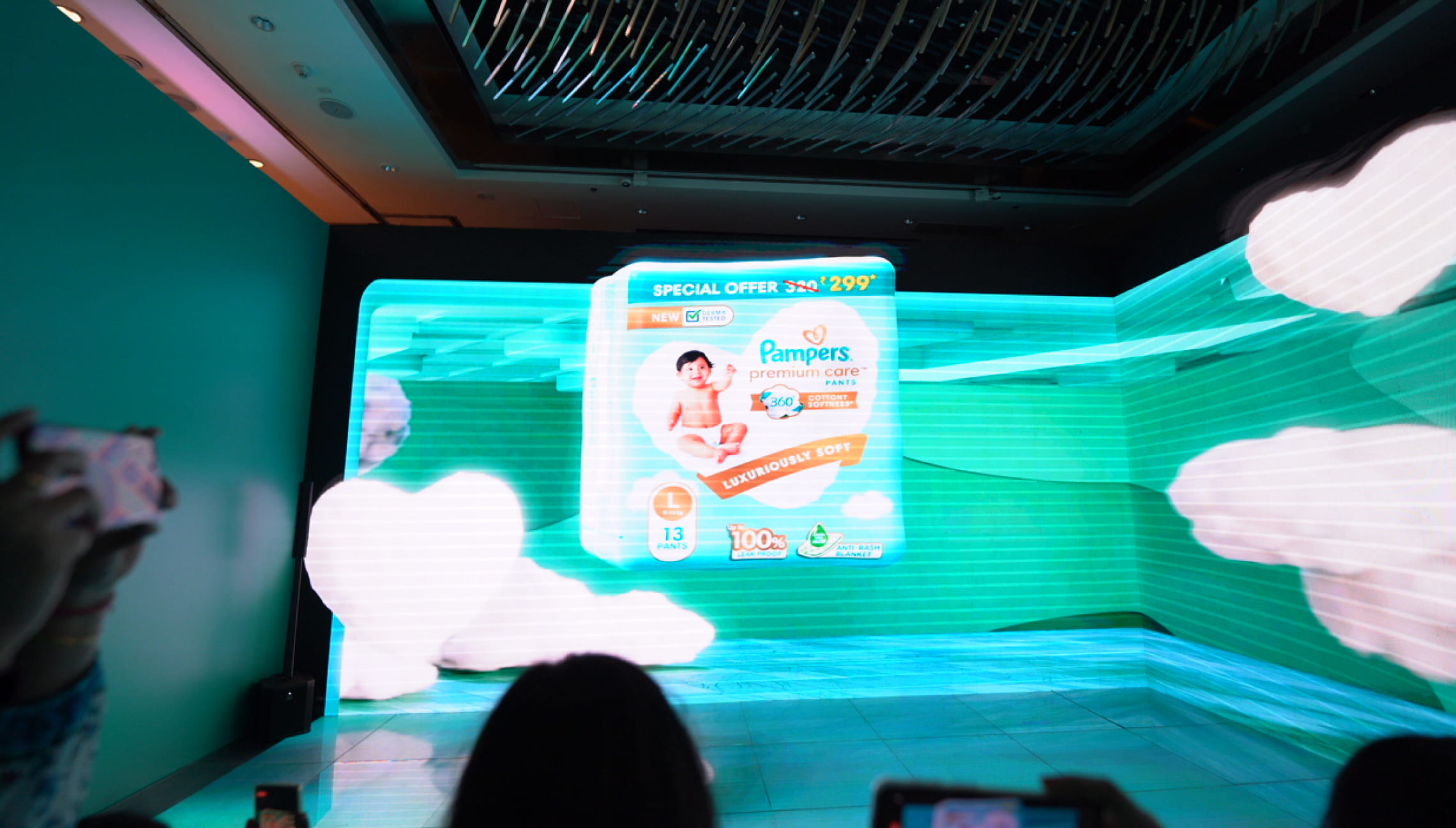

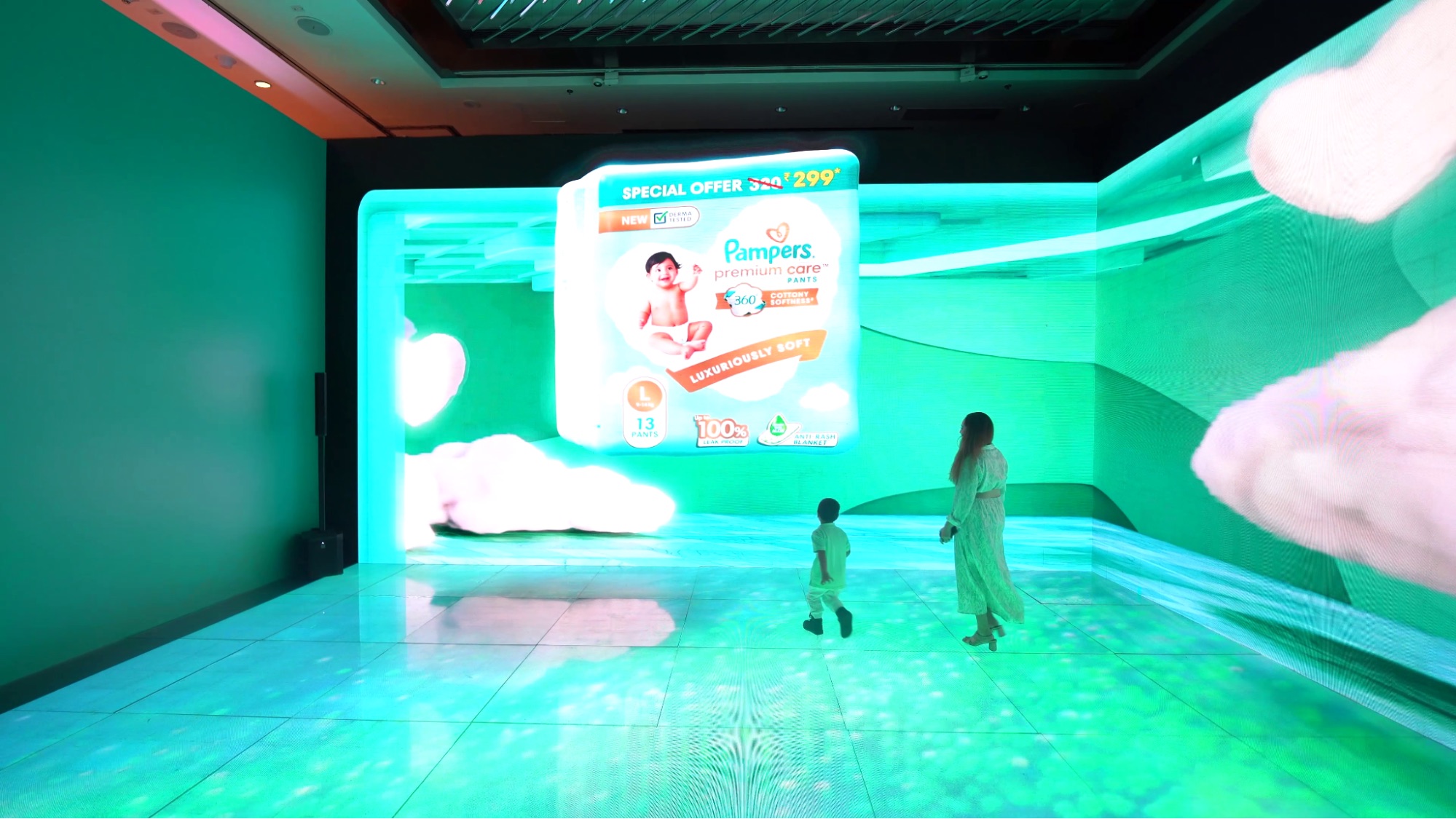

Large-format LED walls paired with integrated floor panels deliver the widest effective viewing area. The Pampers Premium launch used this configuration to maintain illusion integrity across a high-density activation floor. Vertical and horizontal surfaces need synchronized content to create convincing dimensional breaks.

Physical space determines visual impact. Ceiling height, ambient lighting, and foot traffic density all constrain your technical choices. Survey the venue early. Measure twice, render once.

3D Content Pipeline and Perspective Matching

Build your 3D environment to exact venue specifications. Import actual measurements into your modeling software. Anchor human-scale reference objects throughout the scene to validate proportions. A single miscalculation in virtual camera placement destroys the anamorphic effect on site.

Render from the precise projector or camera viewpoint. This perspective match is non-negotiable. Pre-visualization tools help identify distortion issues before content reaches the rendering queue. Short content loops work best for repeat viewing. Eight to fifteen seconds maintains novelty without viewer fatigue.

Technical precision here reduces calibration time on site. The 3D pipeline directly determines whether your illusion reads correctly from the intended vantage point.

Playback Synchronization and System Architecture

Single-source timelines prevent drift. Genlock all playback servers and display hardware to a master clock. Frame-accurate synchronization across LED walls and floor panels preserves anamorphic alignment under movement. Even minor delays between surfaces break the depth illusion.

Deploy redundant systems. A hot-standby server and mirrored media drives protect against hardware failure during peak attendance. Network architecture must support real-time failover without manual intervention. Test your backup chain before doors open.

High-throughput environments expose every technical weakness. Your playback infrastructure must handle continuous operation without degradation.

On-Site Calibration Protocol

Calibrate under actual event lighting conditions. Ambient spill, spotlights, and overhead fixtures all affect perceived brightness and color accuracy. Reserve dedicated time for geometric warping and color correction after install. One hour minimum for alignment, another hour for stress testing during soft opening.

Capture projector-view photos from the optimal viewing position. Overlay these with your content to verify mapping accuracy. Real-time tuning fixes parallax errors that only become visible from specific angles. Small adjustments to warp grids make the difference between a convincing illusion and a failed activation.

Documentation matters. Log every calibration change for rapid rollback if needed.

Display Hardware and Projection Placement

LED panels require consistent pixel pitch across all surfaces. Refresh rates above 1920Hz minimize flicker under camera capture. Brightness headroom matters more than peak specifications. You need overhead to compensate for ambient lighting without crushing contrast.

Ultra-short-throw lenses reduce projector footprint and minimize beam obstruction. Place projectors outside primary traffic paths. Attendees blocking projection paths destroy the effect instantly. Ceiling-mounted rigs offer the most protection but limit flexibility for last-minute adjustments.

Hardware choices directly affect illusion quality. Higher refresh rates and brightness provide more margin for environmental variables.

Crowd Management and Experience Design

Design buffer zones around the primary viewpoint. Subtle floor markers guide positioning without breaking the experience flow. Low stanchions or decals create natural staging without heavy-handed crowd control. Event hosts can encourage brief pauses that maximize both viewing quality and throughput.

Controlled dwell time increases social sharing. Attendees need three to five seconds to process the illusion and reach for their phones. Stage your viewing area to support this micro-moment without creating bottlenecks. Traffic flow analysis prevents crowding that blocks sightlines for others.

Physical space management directly impacts engagement metrics. Plan for it.

Content Strategy for Brand Activation

Focus on product visibility and clear messaging. Anamorphic spectacle serves the brand story, not the other way around. Use rapid visual anchors like package rotations, scale comparisons, or contextual usage scenarios. Minimal text overlays sized for 6-12 meter viewing distances maintain readability.

Track quantifiable outcomes. Dwell time, replay views, social mentions, and QR scans link creative execution to business results. Set baseline metrics before the event to measure lift. Visual impact means nothing without conversion data.

Content pacing should match crowd flow. High-traffic periods need shorter loops to accommodate viewer turnover.

Technical Crew and Operational Roles

Define clear responsibilities before load-in. A functional crew includes: technical lead, playback operator, calibration specialist, floor host, and metrics analyst. Prepare a concise runbook covering power sequencing, network validation, failover procedures, and rollback steps. Keep communications on a dedicated channel to minimize signal noise during operation.

Rehearse transitions and failure scenarios. Every crew member should know their role in three failure modes: power loss, network drop, and hardware malfunction. Operational clarity prevents panic decisions during high-stakes moments.

Documentation and communication prevent most on-floor problems. Invest in both.

Risk Mitigation and Equipment Redundancy

Full-scale preflight testing validates your entire signal chain. Test under load with final content. Monitor power draw, thermal performance, and network latency across the complete system. Spare LED modules and replacement projection lenses should be on site, not in a warehouse.

Log all calibration changes during setup. Version control for media files prevents accidental rollbacks. Network architecture should support isolated troubleshooting without system-wide resets. Build failure tolerance into every layer.

High-attendance floors amplify small problems. Redundancy is cheaper than failure.

Performance Measurement and Insights

Capture both quantitative and qualitative data. Sensor-based foot traffic counts, timestamped video samples, QR analytics, and host-collected sentiment create a complete picture. Compare pre-event baseline metrics with on-floor performance to isolate activation impact. Brand recall surveys validate whether spectacle translated to memory.

Convert raw data into actionable insights. Which content loops drove the longest dwell times? What viewing angles produced the most social shares? How did traffic patterns shift throughout the day? Post-event analysis informs future deployments.

Measurement separates spectacle from strategy. Collect the data.

Technical Deployment Checklist

Scale-accurate 3D models validated against venue measurements. Synchronized playback with tested failover systems. Dedicated calibration windows in the production schedule. Confirmed projector and LED placement locked to floor plans. Staging buffers and host scripts prepared for crowd management. Metrics collection tools configured and tested pre-event.

Anamorphic projection delivers measurable engagement when technical execution meets operational discipline. The visual effect must serve a clear business objective, not exist for spectacle alone. For established brands managing high-throughput activations, structured technical planning reduces risk and increases impact. Ink In Caps builds deployment frameworks tailored to specific venue constraints and performance KPIs—contact us to review technical specifications and operational timelines for your next floor activation
